5 color self-adhesive/label flexographic printing machine

The 5-color stack label flexographic printing machine is designed for various self-adhesive labels and can be widely used in food labels, daily chemical labels, pharmaceutical labels, logistics labels and other fields. It adopts imported frequency converter for stepless speed regulation, with a maximum speed of 100 meters per minute. It is a cheap and efficient label printing machine. Machine mainly use Uv ink and water base ink, Green, environmentally friendly and pollution-free.

Parameter

Video Introduction

Machine Features

◊ Suitable for various high-end self-adhesive trademarks and film materials.
◊ The whole machine adopts imported frequency converter to control the speed, and the maximum printing speed reaches 100 meters per minute.
◊ Both unwinding and rewinding use a 3-inch air shaft to clamp the material and automatically control the tension.
◊ The unwinding part is equipped with an auto web guide system to prevent the material from deflecting.

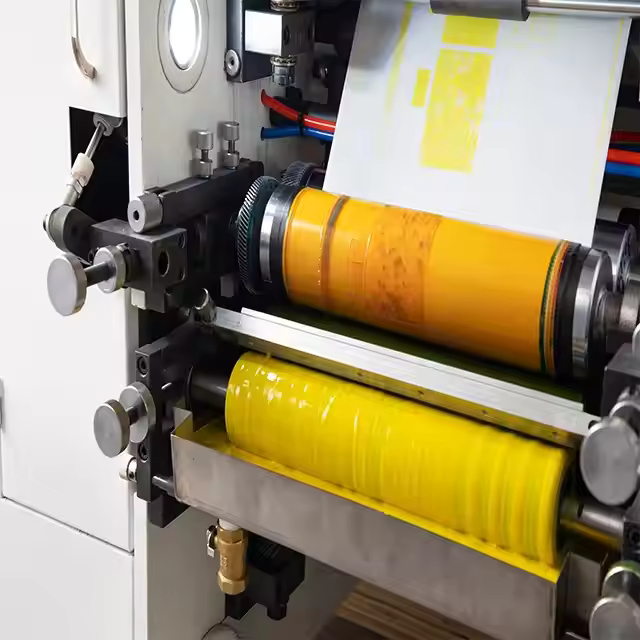

◊ Single scraper and ceramic anilox roller transfer ink, ensuring uniform ink volume. Ceramic rollers have a long service life, are corrosion-resistant and wear-resistant.
◊ Manual pressure adjustment,360-degree circumferential color registration adjustment, color registration accuracy reaches ±0.15mm
◊ Each printing unit has an independent infrared drying device, which can be replaced with a UV drying device.
◊ Die-cutting, slitting, glazing, laminating, and cross-cutting devices can be installed according to customer requirements.
◊ When printing heat-shrinkable materials, a water-cooling roller can be installed to prevent the material from deforming due to excessive temperature after drying.
◊ The machine is made of 60mm thickened iron wall panels and operates stably.
◊ Independent hydraulic unwinding can be selected according to customer requirements; the maximum unwinding diameter reaches 1000mm.

Machine Details

Printing Sample

Packaging and Delivery
